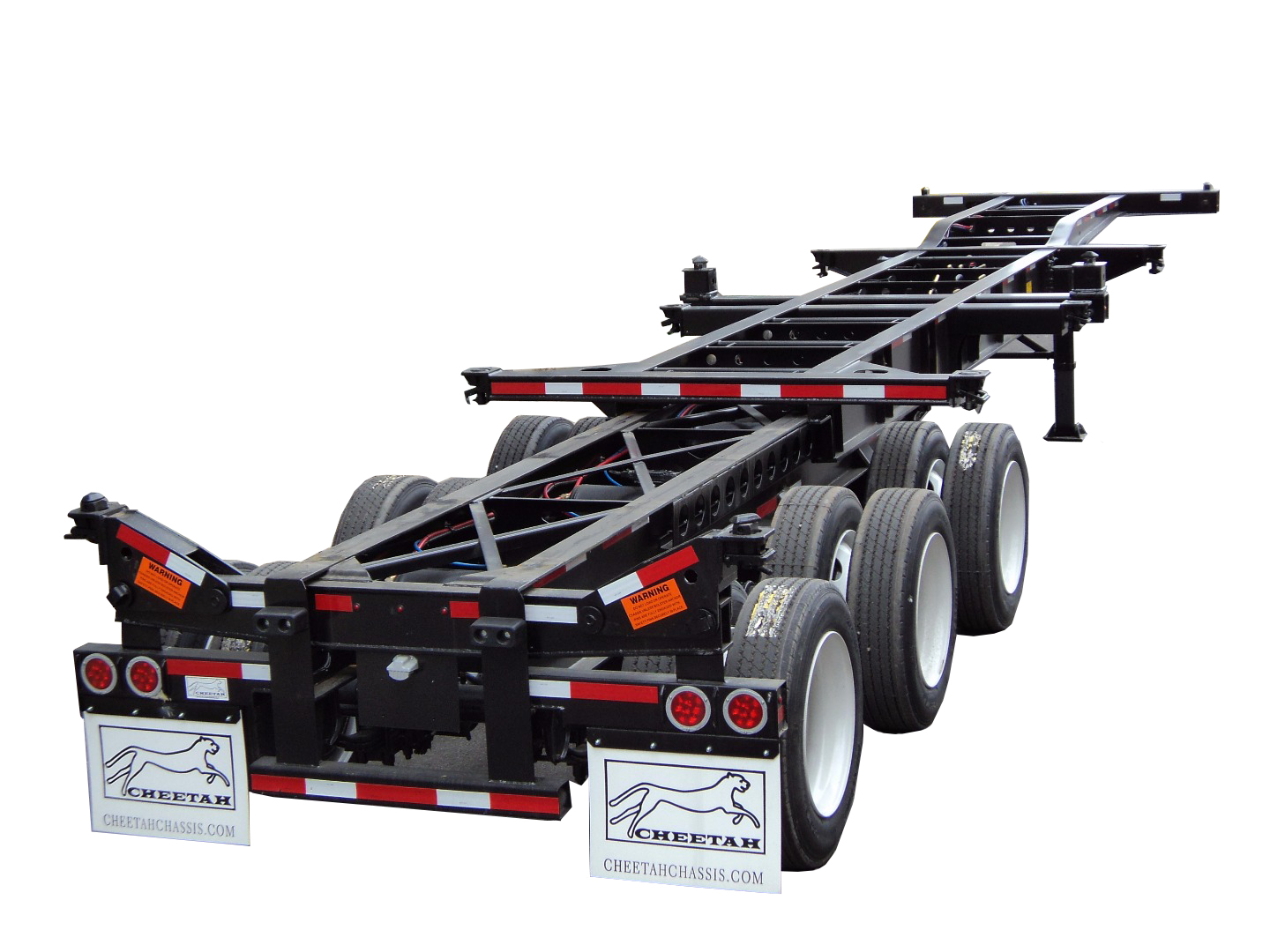

20′-40′ Maximizer 12-Pin 3-Axle Flip-Up Rear Bolster Chassis General Specs
Tare Weight:
Approximately 10,800 lb.
GVWR:
90,000 lbs in the 40 ft. position
Steel & Fasteners:
All structural steel for our 20′-40′ Maximizer 12-Pin 3-Axle Flip-Up Rear Bolster Chassis is ASTM-A572, Grade 50, or ASTM-A607, Grade 50 or better unless otherwise specified. All structural fasteners are Grade 5 or better and are zinc coated
Bogie Beams:
Fabricated I-beam with high-tensile steel
Cross Member:
Fabricated steel
Upper Coupler Assembly:
0.25″ thick pick up plate
Fifth Wheel Height:
46.5 inches
Front Bolster:
Fabricated steel
Rear Bolster:
Manual swing down designed to provide a flush back for docking
Intermediate Bolsters:
Fabricated with retractable twist-locks, Hi-Lo Intermediate Bolsters fabricated with swing down twist locks.
ICC Bumper:
4″ × 4″ tube mounted between bogie beams
Mud Flaps:
30″ × 24″ white plastic
Electrical System:
12 volt, 7-way split pin receptacle plug; modular wiring harness
Slider Mechanism:
Air-operated locking pins
Overall Length Closed:
30.8 feet
Overall Length Extended:
40.5 feet
Gooseneck Beams:
Fabricated I-beam with high-tensile steel
Dimensions
Overall Chassis Width:
96 inches
Maximum Rear Height:
48 inches
Landing Gear
Landing Gear:
AAR-approved two speed with sqaure leg. 55,000-lb. lift capacity and 160,000-lb. static load capacity
Landing Gear Foot Group:
10″ × 10″ low profile sandshoe
Crank Handle Location:
Roadside
Lighting
Light Attachment:
Flange mounted
Light Type:
LED
Brakes
Drum:
Steel outboard mounted
Lubrication:
Synthetic grease
Brake System Type:
2S1M
Brake Chambers:
30/30
Wheels
Rims:
22.5″ × 8.25″ steel
Tire Size:
255/70R/22.5, 16 PLY
Hub Type:
Steel
Axles
Axle Type:
5″ round, tapered, 71.5″ long
Axle Quantity:
Three
Axle Centers:
61″ spread between centers
Kingpin Location:
17.5″ from front of trailer
Suspension
Suspension Type:
Three-leaf spring ride
Finish
Metal Preparation:
Clean, dry steel and NACE No. 3 /SSPC-SP-6 commercial blast cleaning
Primer:
Zinc-rich primer
Topcoat:
Black urethane
