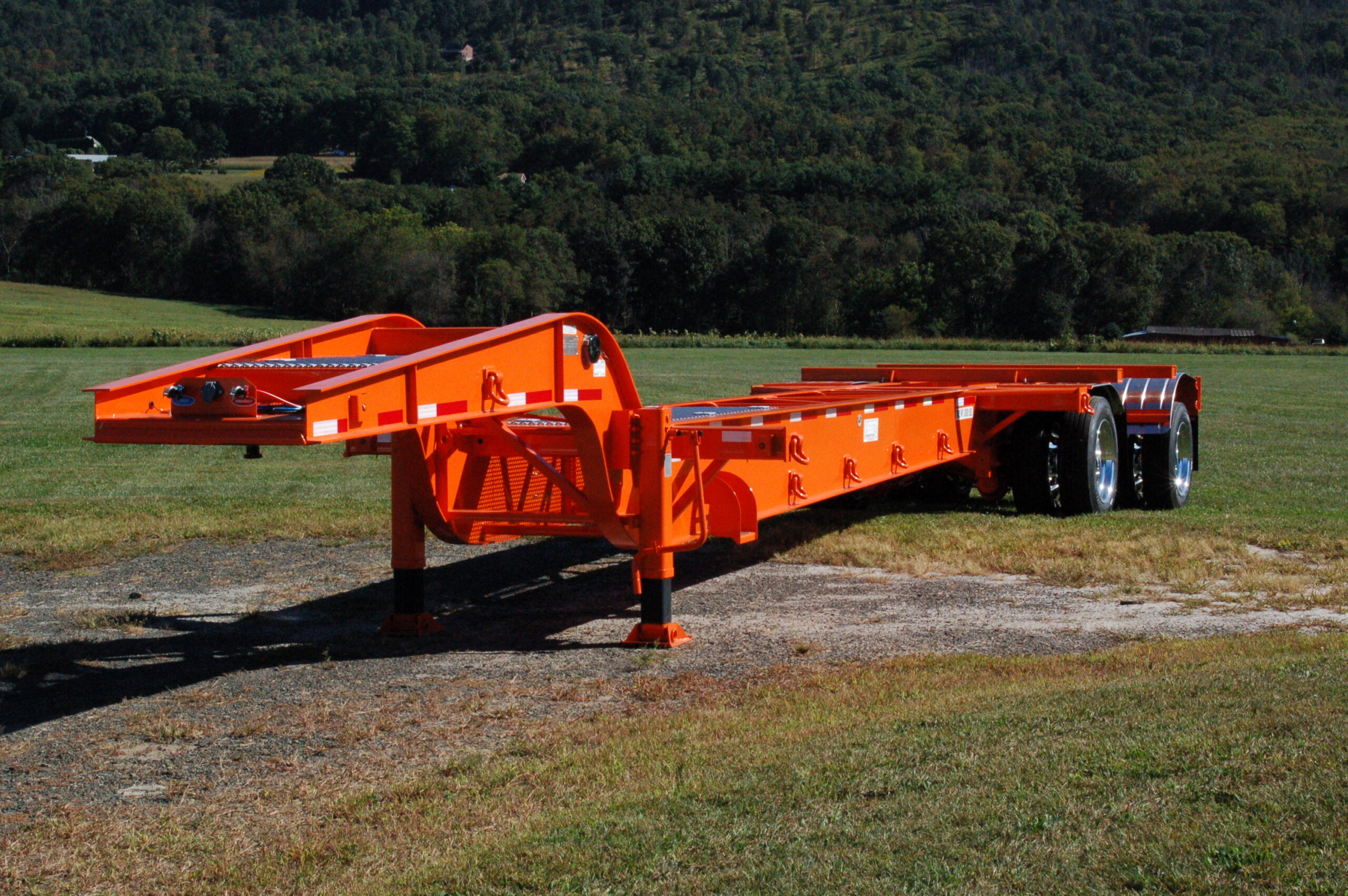

43′ Crane Counterweight Trailer General Specs
Tare Weight:
Approximately 8,730 lb.
GVWR:
80,000 lb.
Main Beams:
Fabricated steel
Fifth Wheel Height:
50 in.
Dimensions
Overall Chassis Width:
96″
Maximum Rear Height:
43 1/2″
Overall Chassis Length:
43′ 6″
Landing Gear
Landing Gear:
55,000-lb. lift capacity and 160,000-lb. static load capacity
Landing Gear Foot Group:
10″ × 10″ low profile sandshoe
Lighting
Light Attachment:
Flange Mounted
Light Type:
LED
Brakes
Drum:
Steel outboard mounted
Lubrication:
Synthetic grease
Brake System Type:
2S1M
Brake Chambers:
30/30
Wheels
Rims:
22.5″ X 8.25″ steel
Tire Size:
11R 22.5
Hub Type:
Steel
Axles
Axle Type:
5″ round, tapered, 71.5″ long
Axle Quantity:
Two
Axle Centers:
49″
Kingpin Location:
15″ from front of trailer
Suspension
Suspension Type:
Spring-ride
Springs:
3-leaf
Finish
Metal Preparation:
Clean, dry steel and NACE No. 3 /SSPC-SP-6 commercial blast cleaning
Primer:
Zinc-rich primer
Topcoat:
Urethane
